NUSCO Products

Software and Hardware Products

NUSCO-200

Servo control for
reciprocating machine

NUSCO-300

Servo control for
rotary processing machines

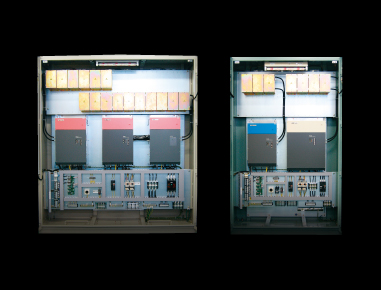

PP Power Panel

11kW-350kW

NSD NC Servo Driver

2kW-350kW

LI Low Inertia Servo Motor

2kW-350kW

SS Smart Servo Series

Main Business

Mini Rotary

Mini Rotary
Mini Rotary
Mini Rotary

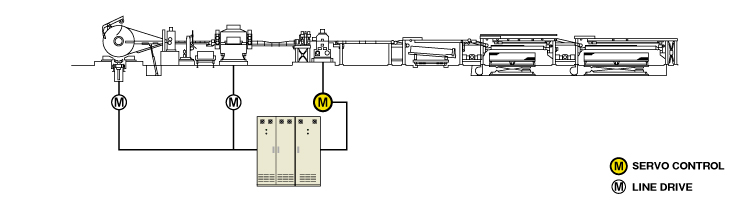

Rotary Shear Line

Rotary Shear Line
Rotary Shear Line
Rotary Shear Line

Tube Mill Line

Tube Mill Line
Tube Mill Line
Tube Mill Line

Forming Line

Forming Line
Forming Line
Forming Line

Magnetic Coil to Sheet Winding Line

Magnetic Coil to Sheet Winding Line
Magnetic Coil to Sheet Winding Line
Magnetic Coil to Sheet Winding Line

Synchro Flying Cutter Line

Synchro Flying Cutter Line
Synchro Flying Cutter Line
Synchro Flying Cutter Line

Drawing download

HQL 132X 31kW/1500rpm Protected password
HQLa 160S 42kW/1000rpm Protected password
HQLa 180L 55kW/500rpm Protected password
HQLa 225NP-Li 86.4kW/500rpm Protected password
HQLa 225NX-cr 110kW/500rpm Protected password
HQLa 280S 136kW/500rpm Protected password
HQLa 280M 150kW/500rpm Protected password
HQLa 280P 202kW/500rpm Protected password
Mi-280X 220kW/500rpm Protected password
Mi-355P 300kW/500rpm Protected password
Other Motor
Model NSD-22
Application Motor Control Protected password
Method Type Vector control with sine wave PWM method.
Input(control) 1Ф AC 200V
Input(power) DC500V-800V
Output 3Ф AC 300V, 55A
Capacity 29KVA
Frequence Carrier frequency : 4kHz
Communication Flat Cable
Max current 200% of the rate current of less than 1 second
Weight 28kg
Ambient temperature 0-55°C, Hunidity Below 80%
Size 570H*340W*300D
Model NSD-33
Application Motor Control Protected password
Method Type Vector control with sine wave PWM method.
Input(control) 1Ф AC 200V
Input(power) DC500V-800V
Output 3Ф AC 300V, 73A
Capacity 38KVA
Frequence Carrier frequency : 4kHz
Communication Flat Cable
Max current 200% of the rate current of less than 1 second
Weight 28kg
Ambient temperature 0-55°C, Hunidity Below 80%
Size 570H*340W*300D
Model NSD-44
Application Motor Control Protected password
Method Type Vector control with sine wave PWM method.
Input(control) 1Ф AC 200V
Input(power) DC500V-800V
Output 3Ф AC 300V, 120A
Capacity 62KVA
Frequence Carrier frequency : 4kHz
Communication Flat Cable
Max current 200% of the rate current of less than 1 second
Weight 46kg
Ambient temperature 0-55°C, Hunidity Below 80%
Size 600H*360W*320D
Model NSD-55
Application Motor Control Protected password
Method Type Vector control with sine wave PWM method.
Input(control) 1Ф AC 200V
Input(power) DC500V-800V
Output 3Ф AC 300V, 160A
Capacity 83KVA
Frequence Carrier frequency : 4kHz
Communication Flat Cable
Max current 200% of the rate current of less than 1 second
Weight 58kg
Ambient temperature 0-55°C, Hunidity Below 80%
Size 630H*450W*330D
Inverter Unit

Character

  • Dual package IGBT for high-efficiency design
  • The serial parallel connection of up to 4 for corresponds to the capacity
  • The high capacity cooling DC FAN, small and low weight due to realization for special high-efficiency cooling fin using
  • Use the big capacity DC cooling FAN and high efficiency cooling FIN todo compact
Inverter Unit Model NSD-220S (480S=220S*3unit, 700S=220S*4unit)
Application The direct current convert to alternate current for motor control Protected password
Method Type Vector control with sine wave PWM method.
Input(control) 1Ф AC 200V
Input(power) DC500V-800V
Output 3Ф AC 300V,
NSD-220S=210A
(NSD-480S=520A, NSD-700S=700A)
Capacity NSD-220S=109KVA
(NSD-480S=270KVA, NSD-700S=364KVA)
Frequence Carrier frequency : 4kHz
Communication Flat Cable
Max current 200% of the rate current of less than 1 second
Weight 38,8kg
Ambient temperature 0-55°C, Hunidity Below 80%
Size 350H*610W*398D
Inverter Unit Model NSD-270S (450S=270S*2unit, 660S=270S*3unit, 850S=270S*4unit)
Application The direct current convert to alternate current for motor control Protected password
Method Type Vector control with sine wave PWM method.
Input(control) 1Ф AC 200V
Input(power) DC500V-800V
Output 3Ф AC300～330V,
NSD-270S=270A
(NSD-450S=450A, NSD-660S=660A, NSD-850S=850A)
Capacity NSD-270S=154KVA
(NSD-450S=257KVA, NSD-660S=377KVA, NSD-850S=485KVA)
Frequence Carrier frequency : 3KHz～4KHz
Communication Flat Cable
Max current 200% of the rate current of less than 1 second
Weight 43kg
Ambient temperature 0-55°C, Hunidity Below 80%
Size 350H*625W*413D
Inverter Unit Model NSD-330S
Application The direct current convert to alternate current for motor control Protected password
Method Type Vector control with sine wave PWM method.
Input(control) 1Ф AC 200V
Input(power) DC500V-800V
Output 3Ф AC 300V, 320A
Capacity 166KVA
Frequence Carrier frequency : 4kHz
Communication Flat Cable
Max current 200% of the rate current of less than 1 second
Weight 40kg
Ambient temperature 0-55°C, Hunidity Below 80%
Size 400H*600W*333D
Inverter Unit Model NSD-370S
Application The direct current convert to alternate current for motor control Protected password
Method Type Vector control with sine wave PWM method.
Input(control) 1Ф AC 200V
Input(power) DC500V-800V
Output 3Ф AC 300V, 370A
Capacity 192KVA
Frequence Carrier frequency : 4kHz
Communication Flat Cable
Max current 200% of the rate current of less than 1 second
Weight 40kg
Ambient temperature 0-55°C, Hunidity Below 80%
Size 400H*600W*333D
Converter Unit Model NSD-CV330(Integrated with control unit)
Application The alternate current convert to direct current for motor control Protected password
Input(control) 1Ф AC 200V
Input(power) 3Ф AC 400V
Frequence Input 50/60Hz
Output DC510V-620V
Output Current 320A
Capacity for 86kW
Weight 21kg
Ambient temperature 0-55°C, Hunidity Below 80%
Method Type Diode
Communication Hardwiring
Size 397H*338W*270D
Converter Unit Model NSD-CV330S
Application The alternate current convert to direct current for motor control Protected password
Input(control) 1Ф AC 200V
Input(power) 3Ф AC 400V
Frequence Input 50/60Hz
Output DC510V-620V
Output Current 320A
Capacity for 86kW
Weight 21kg
Ambient temperature 0-55°C, Hunidity Below 80%
Method Type Diode
Communication Hardwiring
Size 479H*338W*270D
Converter Unit Model NSD-CV370
Application The alternate current convert to direct current for motor control Protected password
Input(control) 1Ф AC 200V
Input(power) 3Ф AC 400V
Frequence Input 50/60Hz
Output DC510V-620V
Output Current 400A
Capacity for 116kW
Weight 24.5kg
Ambient temperature 0-55°C, Hunidity Below 80%
Method Type Diode
Communication Hardwiring
Size 578H*405W*282D
Converter Unit Model NSD-CV480
Application The alternate current convert to direct current for motor control Protected password
Input(control) 1Ф AC 200V
Input(power) 3Ф AC 400V
Frequence Input 50/60Hz
Output DC510V-620V
Output Current 520A
Capacity for 150kW
Weight 24.5kg
Ambient temperature 0-55°C, Hunidity Below 80%
Method Type Diode
Communication Hardwiring
Size 578H*405W*282D
Converter Unit Model NSD-CV700
Application The alternate current convert to direct current for motor control Protected password
Input(control) 1Ф AC 200V
Input(power) 3Ф AC 400V
Frequence Input 50/60Hz
Output DC510V-620V
Output Current 700A
Capacity for 220kW
Weight 24.5kg
Ambient temperature 0-55°C, Hunidity Below 80%
Method Type Diode
Communication Hardwiring
Size 578H*405W*282D
Converter Unit Model NSD-CV950
Application The alternate current convert to direct current for motor control Protected password
Input(control) 1Ф AC 200V
Input(power) 3Ф AC 400V
Frequence Input 50/60Hz
Output DC510V-620V
Output Current 750A (Refer to inverter)
Capacity for 300kW
Weight 24.5kg
Ambient temperature 0-55°C, Hunidity Below 80%
Method Type Diode
Communication Hardwiring
Size 578H*405W*282D
Other Driver
NSD Control Unit Model NSD-CU (included NSD-E2 or NSD-E3, GDIP-C2, etc.)
Application Motor Control Protected password
CPU High-speed control by Toshiba 32Bit CPU and Dual CPU system
of Renesas 32Bit
Function
  • High-speed communication function N-NET equipped for Servo drive control
  • USB communication function for PC maintenance
  • Alarm occurrence confirmation LED display of each inverter
  • Up to 6 Lines of the inverter parallel control
  • Detects each inverter cooling fin temperature, and outputs the maximum temperature to NSD-E2 , NSD-E3
Communication
Interface		 RS422
Power Supply
Voltage		 1Ф AC 100-240V, 2A, 50/60Hz
Input Signal DC 24V 5mA, Pulse, Other
Sensor input 3ch(DC 24V)
3 system noise filter function with sensor input function
SIO interface RS232C/RS422
Encoder input 3ch(DC 5V)
Encoderoutut 1ch(DC 5V)
Analogue input 2ch(DC10V/DC-10V)
Analogue output 2ch(DC10V/DC-10V)
Display Type 7-segment, LED
Ambient temperature 0-55°C, Hunidity Below 80%
NSD Control Unit Model NSD-CU3 (included NSD-E4, GDIP-C2, etc.)
Application Motor Control Protected password
CPU High-speed control by Toshiba 32Bit CPU and Dual CPU system
of Renesas 32Bit
Function
  • High-speed communication function N-NET equipped for Servo drive control
  • USB communication function for PC maintenance
  • Alarm occurrence confirmation LED display of each inverter
  • Up to 6 Lines of the inverter parallel control
  • Detects each inverter cooling fin temperature, and outputs the maximum temperature to NSD-E4
Communication
Interface		 Ether Net, CC-Link, RS-422, etc
Power Supply
Voltage		 1Ф AC 100-240V, 2A, 50/60Hz
Input Signal DC 24V 5mA, Pulse, Other
Sensor input 3ch(DC 24V)
3 system noise filter function with sensor input function
Encoder input 3ch(DC 5V)
Encoderoutut 1ch(DC 5V)
Analogue output 4ch(DC10V/DC-10V)
Display Type 7-segment, LED
Ambient temperature 0-55°C, Hunidity Below 80%
Control Card Model NSD-E2
System Model NSD-22, NSD-33, NSD-44, NSD-55, NSD-CU Protected password
CPU High-speed control by Toshiba 32Bit CPU and Dual CPU system
of Renesas 32Bit
Function . High-speed communication function N-NET equipped
for Servo drive control
. USB communication function for PC maintenance
. Alarm occurrence confirmation LED display
Communication
Interface		 RS422
Input Signal DC 24V 5mA, Pulse, Other
Sensor input 3ch(DC 24V)
3 system noise filter function with sensor input function
SIO interface RS232C/RS422
Encoder input 3ch(DC 5V)
Encoderoutut 1ch(DC 5V)
Analogue input 2ch(DC10V/DC-10V)
Analogue output 2ch(DC10V/DC-10V)
Display Type 7-segment, LED
Ambient temperature 0-55°C, Hunidity Below 80%
Control Card Model NSD-E3
System Model NSD-22, NSD-33, NSD-44, NSD-55, NSD-CU Protected password
CPU High-speed control by Toshiba 32Bit CPU and Dual CPU system
of Renesas 32Bit
Function . High-speed communication function N-NET equipped
for Servo drive control
. USB communication function for PC maintenance
. Alarm occurrence confirmation LED display
Communication
Interface		 RS422
Input Signal DC 24V 5mA, Pulse, Other
Sensor input 3ch(DC 24V)
3 system noise filter function with sensor input function
SIO interface RS232C/RS422
Encoder input 3ch(DC 5V)
Encoderoutut 1ch(DC 5V)
Analogue input 2ch(DC10V/DC-10V)
Analogue output 2ch(DC10V/DC-10V)
Display Type 7-segment, LED
Ambient temperature 0-55°C, Hunidity Below 80%
Control Card Model NSD-E4, NSD-E4a(Ver_1.2a)
System Model NSD-22, NSD-33, NSD-44, NSD-55, NSD-CU3 Protected password
CPU High-speed control by Toshiba 32Bit CPU and Dual CPU system
of Renesas 32Bit
Function . High-speed communication function N-NET equipped
for Servo drive control
. USB communication function for PC maintenance
. Alarm occurrence confirmation LED display
Communication
Interface		 Ether Net, CC-Link, RS-422, etc
Input Signal DC 24V 5mA, Pulse, Other
Sensor input 3ch(DC 24V)
3 system noise filter function with sensor input function
Encoder input 3ch(DC 5V)
Encoderoutut 1ch(DC 5V)
Analogue output 4ch(DC10V/DC-10V)
Display Type 7-segment, LED
Ambient temperature 0-55°C, Hunidity Below 80%
Digital I/O Module (NL-DIO2) Model NL-DIO2
Power DC24V, 10W Protected password
Input Contact or Open Collector, 16 input
Output Photo relay (max. lad DC24V/AC200V, 0.2A)
16 output
Display Type LED
Weight 400g
Size 163.3H*64.6W*55D
Digital I/O Module Model NL-DIO2b,NL-DIO3
Power DC24V, 10W Protected password
Input Contact or Open Collector, 16 input
Output Photo relay (max. lad DC24V/AC200V, 0.2A)
16 output
Display Type LED
Weight 400g
Size 163.3H*64.6W*55D
Other System
Rotary Encoder Model 96183/4096
Power Supply DC5V Protected password
Pulse/Revolution 4096ppr
Number of pin 17Pin
Weight 740g
Application Dectect the direction and angle of rotation for motor & meaure roll
Encoder Coupling (for motor) Model M96604/1515MTA(45-1515)
Type Disc coupling Protected password
Size 42H*45W*42D
Coupling axis diameter 15-15
Get out angle deviation 2° lower
Weight Apporx.75g
Encoder Coupling (for measure) Model M96605/1515A(76-1515)
Type Bellows coupling Protected password
Size 40H*76W*40D
Coupling axis diameter 15-15
Get out angle deviation 2° lower
Weight Apporx.195g
Encoder Cable Model NCBL-RE-XXXX
Application for encoder Protected password
<Cable>
Max. voltage 300V
Max. temperature 80°C
Insulation
AVG.thick		 10mils and 11mils
Insulation material PVC
Size & Quantity of
conductors		 12/25AWG and 4/21AWG
Color Black
<Connectors>
Connector NCBL-RE-WXXX Type : 17pin-17pin
NCBL-RE-SXXX Type : 17pin-6pin
17Pin connctor
(Encoder side>		 Maker : JAE
Connctor type : Plug, Female scockets
Number of positions : 17
Shell size - insert : 20-29AWG
Shell material, Finish : Aluminum alloy,
Zinc plated, Black
Contact finish : Silver
Current rate : 13A
Voltage rate : 500VAC, 700VDC
Operating temperature : -55°C ~125°C
6Pin connector
(Driver side)		 Maker : PHOENIX CONTACT
Connector Type : Plug, Female sockets
Munber of positions : 6
Pitch : 0.138" (3.5mm)
Plug wire entry : 180°
Current rate : 8A
Voltage rate : 300V
Wire Gauge or range : 30-14 AWG
Contact mating finish : Tin
cable name definition
Other Encoder
HMI Touch panel Model AGP3500 (AGP3500-T1-AF)
Application Operation the shear in connetion with the servo driver GP-Pro EX 3.0 and above Protected password
Type P/C
Rated Voltage 1Ф AC 100-240V
Rated frequency 50/60Hz
Interface Ethernet, Profibus, CC-Link
Internal memory FLASH EPROM 16MB
Display device TFT color LCD
Weight 2.7kg
Ambient temperature 0-55°C
Size 213H*271W*57D
HMI Touch panel Model GP4501 (PFXGP4501TAA)
Application Operation the shear in connetion with the servo driver GP-Pro EX 3.0 and above Protected password
Rated Voltage 1Ф AC 100-240V
Rated frequency 50/60Hz
Interface Ethernet, RS-232C, RS422/485, etc
Internal memory FLASH ROM 32MB
Display device TFT color LCD
Weight 2.0kg
Ambient temperature 0-55°C
Size 272.5H*214.5W*57D
Condenser Unit (CU-752H)

CU752Hb : for NSD-22, NSD-33, NSD-44, NSD-55
CU752Hc : for NSD-220S, NSD-330S, NSD-370S, NSD-480S, NSD-700S

Condenser Unit Model CU-752Hb / CU-752Hc / CU-752Hd
CU-752Hb Application The charge-discharge according to the movement of the exit shear.
Surge, Absorbs regenerate energy.		 Protected password
Finishing Trivalent chromate coating
Connection It must connected in parallel
CU-752Hc Capacity 7500μF,
(1Unit =2ea(15000μF)series)
Walking Voltage DC400V~800V
Rating Voltage DC800V
CU-752Hd Tolerance ±20%
Thickness 1.2mm
Weight 5.2kg
Size 241H*237W*124D
Communication Cable Model NCBL-TS35C1-XXX
Application for touch monitor Protected password
<Cable>
Max. voltage 300V
Max. temperature 80°C
Insulation
AVG.thick		 10mils and 11mils
Insulation material PVC
Size & Quantity of
conductors		 12/25AWG and 4/21AWG
Color Black
<Connectors>
9Pin connector
(Touch monitor side)		 Maker : OMRON
Connctor type : Plug, Female scockets
Number of positions : 9
Shell size - insert : 20-29AWG
Current rate : 5A
Voltage rate : 300VAC
Contact resistance : 15mΩ max
Dielectric Strenght : 2000VAD for 1min
Ambient operating temperature :
-55°C ~105°C
9Pin connector
(Driver side)		 Maker : PHOENIX CONTACT
Connector Type : Plug, Female sockets
Munber of positions : 9
Pitch : 0.138" (3.5mm)
Plug wire entry : 180°
Current rate : 8A
Voltage rate : 300V
Wire Gauge or range : 30-14 AWG
Contact mating finish : Tin
Cable name difinition
Others
